New 3500 Lease & Finance Specials For December 2024
New 2024 Ram 3500 Limited 4x4 Crew Cab 6'4 Box
2024 Ram 3500 Limited - Savings Up To $11,355 Off MSRP
New 2024 Ram 3500 Limited 4x4 Crew Cab 6'4 Box. Landmark Savings $11,355 Buy for $89,695. . Stock#: R88046. Vin: 3C63R3SLXRG183824. MSRP: $101050.
All prices & payments plus tax, tag, title (or TAVT) & GA WRA fees. Financing with approved credit. Must print out and present at dealership upon arrival to receive the special Internet price. All pricing subject to modification without notice. Dealer is not responsible for typographical errors. Please verify offer details with Dealer Representative prior to sale.
Arm Yourself to Own Work with the Powerful (and Incredibly Elegant) Ram 3500
There is exactly one truck you can buy or lease that outpaces all others in terms of handling the hardest projects: Ram’s latest 3500. Any Atlanta GA drivers interested in buying or leasing an efficient truck will enjoy that some attributes of this solid, heavy-duty, eager-to-tow truck have undergone a revamp recently.
Unparalleled Horsepower That Always Keeps Your Heading Forward
Regardless of whether you want it for towing or hauling around crucial materials for a project, you are going to need a truck that has enough horsepower to tackle anything you throw at it. The Ram 3500 always comes up big in this department, but the newest version gets a sizeable boost. In order for increased torque output, the Cummins Turbo Diesel I6 6.7-liter (L) engine now comes with 385 horsepower (hp), a raised turbo boost max, heightened gasoline flow, and remastered engine control unit (ECU). Likewise, the most recent 3500 lays claim to an added 30 pound-feet (lb.-ft.) of torque for a maximum potential output of 930 lb.-ft., ensuring it receives unparalleled torque scores in its class. If you would rather leverage a gasoline engine, the current 3500 can come with a 6.4-L Hemi V8 Heavy-Duty engine, which will arm you with 410 hp and a max of 429 lb.-ft. of torque. A 5.7-L Hemi V8 gas motor is also a great choice, providing you with 383 hp and 400 lb.-ft. of torque.
Towing Prowess That Rises above in the Heavy-Duty Pickup Class
The Ram 3500 is favored with %SEO_CITY truck shoppers who want to purchase or lease a vehicle that can definitely tow anything. Ram went above and beyond to make sure the newest edition has everything it needs to tow in a class of its own by incorporating an exceptional fifth-wheel hitch. This unique hitch supplies the truck with greater towing capacity than other pickups, up to a grand total of 30,000 lbs. Moreover, the hitch can be detached at any time. The fifth-wheel hitch capacity for the 3500 is 31,210 lbs., and its receiver hitch pulling potential is 20,000 lbs.
Payload Performance That Never Lets You down
The latest version of the Ram 3500 is just as reliable at hauling payload as it is at pulling trailers. With the blending of a regular cab, the lengthiest truck bed, and the 6.4-L Hemi, this pickup can manage up to 7,930 lbs of cargo, rendering it the leading truck selection for anyone who is continuously carting things from point A to point B in Atlanta GA. Even if you consider other cab and bed configurations, the fact remains the same: The Ram 3500 is set to cart your equipment and other gear throughout Atlanta. Are you really ready to bet your next truck purchase on the concept that the competition can match up with this impeccable commitment to payload supremacy?
Get the Most from a Ram 3500 Thanks to the Perfect Trim Package
Ram 3500 Tradesman
Boost your jobsite productivity with an automotive workhorse boasting a 5.7-L V8 HEMI VVT engine: The hardy Ram 3500 Tradesman. With a payload maximum of 4,080 lbs., it allows you to carry basically anything you can think of. Crew cab models also come with in-floor rear cargo bins and a stowing area under the back chairs for storing all of those loose things in one place.
Ram 3500 SLT
Whenever you have many passengers and exceptionally hefty equipment to transport, Ram 3500 SLT has everything under control with a towing max of 31,170 lbs. and room to easily handle a total of six passengers. Moreover, this long-lasting truck offers up numerous convenient modern comforts, that include a one-year subscription to SiriusXM Satellite Radio, Uconnect 3 featuring a five-inch (in.) display, and remote keyless entry.
Ram 3500 Big Horn
Showcasing a back-supported driver’s seat with 10 varied settings, split-bench front seating in premium cloth, and 60/40-split rear seats that fold up to create space for additional gear, Ram 3500 Big Horn provides a ton of adaptable seating options. Your daily traveling experience is improved, as well, through the premium steering wheel wrapped in leather and optional class-largest 8.4-in. touchscreen.
Ram 3500 Highlights
Cab and Seating Arrangements That Always Take Care of Your Requirements
Still sorting out which cabin to go with for your new Ram 3500 from %DEALERSHIP? No worries. The most recent 3500 presents to you three unique cab options:
- Regular Cab
- Crew Cab
- Mega Cab
Also, if you want extra seating, you can opt to forego bucket seating in the front in favor of the 40/20/40-split bench seat, which grants you space for three passengers in the front for a final total of six individuals in all.
Let Loose Your Inner Tech Lover with Uconnect Features
An 8.4-in. color monitor (featuring Uconnect service) is optional and a top choice for those who are looking to lease or purchase a truck with an extra dose of luxury. To really push this upgrade over the top and guarantee other pickups cannot stay on pace, SOS Call functionality, Vehicle Finder utility, SiriusXM Guardian, HD Radio, Android Auto, Apple CarPlay, and countless other premium features help seal the deal. For tech-savvy pickup owners in Atlanta, why would you ever want to settle for anything less than this list of amazing qualities and the biggest touchscreen in its class?
Incorporate a Personal Touch to Your Ram 3500 with a Slew of Unique Choices
You have the choice to increase your purchased or leased Ram 3500’s functionality considerably by selecting from several additions waiting for buyers interested in customizing their brand-new, heavy-duty pickup. Avoid scuff marks and gouges when loading or unloading with bed rail caps, and boost aerodynamics through tubular wheel-to-wheel side steps and the tonneau cover that aids in optimizing airflow. Furthermore, power exterior mirrors provide you a wider view of your environment, while at the same time including such highlights as warmed defrost, driver memory, and outside turn signals.

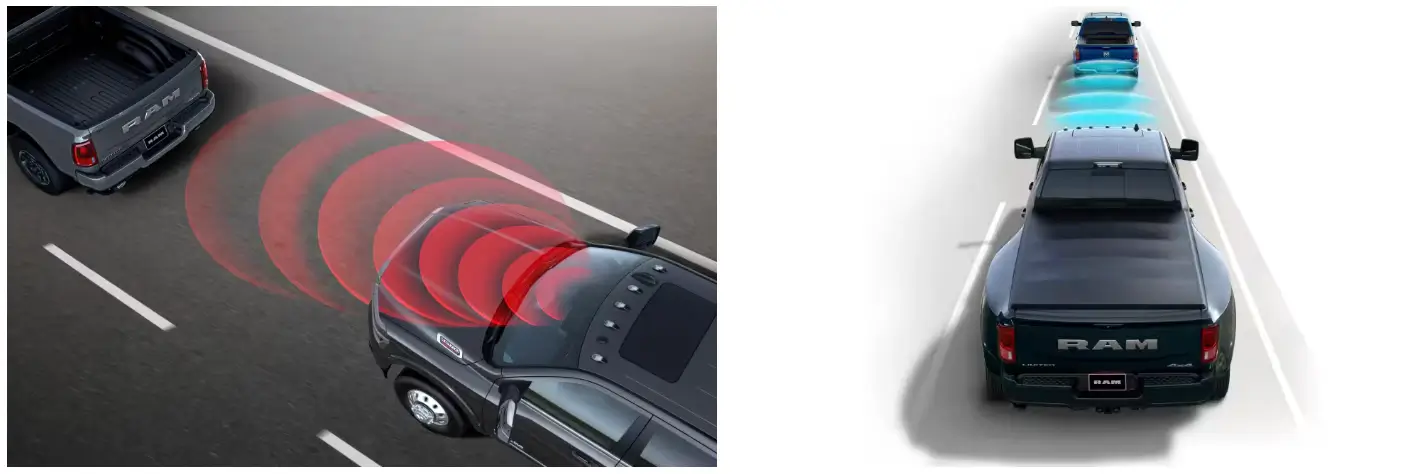

Turn Safety into a Top Consideration with the Most Recent Ram 3500 from Landmark Dodge Chrysler Jeep Ram in Atlanta GA
Feeling safe and comfortable in the driver’s chair while you make your way about Atlanta or travel outside of the city is a major part of the Ram 3500’s design — and why so many of our compatriots here in Atlanta cannot wait to buy or lease this pickup. This range of sturdy trucks was engineered to offer boosted protection for everyone aboard and the pickup itself. For that matter, many of the trim packages come loaded with a cavalcade of standard safety programs to decrease your concerns. Integrated and optional features consist of:
- Electronic Stability Control
- Advanced Multistage Front Airbags
- Sentry Key Theft Deterrent System
- ParkView Rear Back Up Camera
- Cargo-View Camera
- ParkSense Front/Rear ParK Assist Sensors
With the newest 3500, Ram has crafted the best of the full-size trucks. You will never find a pickup that even comes close to the 3500’s unbelievable safety features, refined diesel engine, unmatched pulling possibilities, and substantial cargo-carrying potential. If you want a pickup that faultlessly combines workhorse functionality with celebrated consistency, the brand-new Ram 3500 is definitely what you want.
Trim Level Market Research
Ram 3500 - Big Horn 4x2 Crew Cab 6'4" Box - Starting From: $43,450
Pricing
Starting From $43,450
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3644
Curb Weight - Rear 2842
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 32240
Dead Weight Hitch - Max Trailer Wt. 20550
Dead Weight Hitch - Max Tongue Wt. 2055
Wt Distributing Hitch - Max Trailer Wt. 20550
Wt Distributing Hitch - Max Tongue Wt. 2055
Fifth Wheel Hitch - Max Trailer Wt. 22900
Maximum Trailering Capacity 20550
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Big Horn 4x2 Crew Cab 8' Box - Starting From: $43,650
Pricing
Starting From $43,650
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3740
Curb Weight - Rear 2824
Gross Vehicle Weight Rating Cap 11100
Gross Combined Wt Rating 33670
Dead Weight Hitch - Max Trailer Wt. 20380
Dead Weight Hitch - Max Tongue Wt. 2038
Wt Distributing Hitch - Max Trailer Wt. 20380
Wt Distributing Hitch - Max Tongue Wt. 2038
Fifth Wheel Hitch - Max Trailer Wt. 24340
Maximum Trailering Capacity 20380
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Big Horn 4x2 Reg Cab 8' Box - Starting From: $39,095
Pricing
Starting From $39,095
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3450
Curb Weight - Rear 2609
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 34630
Dead Weight Hitch - Max Trailer Wt. 23000
Dead Weight Hitch - Max Tongue Wt. 2300
Wt Distributing Hitch - Max Trailer Wt. 23000
Wt Distributing Hitch - Max Tongue Wt. 2300
Fifth Wheel Hitch - Max Trailer Wt. 25330
Maximum Trailering Capacity 23000
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 18 X 8
Rear Wheel Size 18 X 8
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 45.4
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 3
Front Head Room 39.8
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Wheelbase 140
Length, Overall w/o rear bumper 232
Width, Max w/o mirrors 79.4
Height, Overall 77.8
Ground Clearance, Front 7.4
Ground Clearance, Rear 7.4
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.7
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Big Horn 4x4 Crew Cab 6'4" Box - Starting From: $46,350
Pricing
Starting From $46,350
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3889
Curb Weight - Rear 2856
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 32580
Dead Weight Hitch - Max Trailer Wt. 20250
Dead Weight Hitch - Max Tongue Wt. 2025
Wt Distributing Hitch - Max Trailer Wt. 20250
Wt Distributing Hitch - Max Tongue Wt. 2025
Fifth Wheel Hitch - Max Trailer Wt. 22780
Maximum Trailering Capacity 20250
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 79.8
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Big Horn 4x4 Crew Cab 8' Box - Starting From: $46,550
Pricing
Starting From $46,550
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4041
Curb Weight - Rear 2897
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 33610
Dead Weight Hitch - Max Trailer Wt. 20040
Dead Weight Hitch - Max Tongue Wt. 2004
Wt Distributing Hitch - Max Trailer Wt. 20040
Wt Distributing Hitch - Max Tongue Wt. 2004
Fifth Wheel Hitch - Max Trailer Wt. 23940
Maximum Trailering Capacity 20040
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Big Horn 4x4 Mega Cab 6'4" Box - Starting From: $47,850
Pricing
Starting From $47,850
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4011
Curb Weight - Rear 2967
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 32710
Dead Weight Hitch - Max Trailer Wt. 19860
Dead Weight Hitch - Max Tongue Wt. 1986
Wt Distributing Hitch - Max Trailer Wt. 19860
Wt Distributing Hitch - Max Tongue Wt. 1986
Fifth Wheel Hitch - Max Trailer Wt. 22860
Maximum Trailering Capacity 19860
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 50.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 40.3
Second Leg Room 43.1
Second Shoulder Room 65.6
Second Hip Room 62.8
Wheelbase 160.5
Length, Overall w/o rear bumper 249.9
Width, Max w/o mirrors 79.4
Height, Overall 78.5
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Big Horn 4x4 Reg Cab 8' Box - Starting From: $41,895
Pricing
Starting From $41,895
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3725
Curb Weight - Rear 2677
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 34540
Dead Weight Hitch - Max Trailer Wt. 20590
Dead Weight Hitch - Max Tongue Wt. 2059
Wt Distributing Hitch - Max Trailer Wt. 20590
Wt Distributing Hitch - Max Tongue Wt. 2059
Fifth Wheel Hitch - Max Trailer Wt. 25120
Maximum Trailering Capacity 20590
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 18 X 8
Rear Wheel Size 18 X 8
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 41.5
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 3
Front Head Room 39.8
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Wheelbase 140
Length, Overall w/o rear bumper 232
Width, Max w/o mirrors 79.4
Height, Overall 79.5
Ground Clearance, Front 8.5
Ground Clearance, Rear 8.5
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.7
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Laramie 4x2 Crew Cab 6'4" Box - Starting From: $50,450
Pricing
Starting From $50,450
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3718
Curb Weight - Rear 2827
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 32240
Dead Weight Hitch - Max Trailer Wt. 14480
Dead Weight Hitch - Max Tongue Wt. 1448
Wt Distributing Hitch - Max Trailer Wt. 14480
Wt Distributing Hitch - Max Tongue Wt. 1448
Fifth Wheel Hitch - Max Trailer Wt. 14300
Maximum Trailering Capacity 14480
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 220
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Laramie 4x2 Crew Cab 8' Box - Starting From: $50,650
Pricing
Starting From $50,650
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3746
Curb Weight - Rear 2869
Gross Vehicle Weight Rating Cap 11100
Gross Combined Wt Rating 33670
Dead Weight Hitch - Max Trailer Wt. 14410
Dead Weight Hitch - Max Tongue Wt. 1441
Wt Distributing Hitch - Max Trailer Wt. 14410
Wt Distributing Hitch - Max Tongue Wt. 1441
Fifth Wheel Hitch - Max Trailer Wt. 14230
Maximum Trailering Capacity 14410
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 220
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Laramie 4x4 Crew Cab 6'4" Box - Starting From: $53,350
Pricing
Starting From $53,350
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3953
Curb Weight - Rear 2897
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 32580
Dead Weight Hitch - Max Trailer Wt. 14180
Dead Weight Hitch - Max Tongue Wt. 1418
Wt Distributing Hitch - Max Trailer Wt. 14180
Wt Distributing Hitch - Max Tongue Wt. 1418
Fifth Wheel Hitch - Max Trailer Wt. 14000
Maximum Trailering Capacity 14180
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 79.8
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Laramie 4x4 Crew Cab 8' Box - Starting From: $53,550
Pricing
Starting From $53,550
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4123
Curb Weight - Rear 2910
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 33610
Dead Weight Hitch - Max Trailer Wt. 13990
Dead Weight Hitch - Max Tongue Wt. 1399
Wt Distributing Hitch - Max Trailer Wt. 13990
Wt Distributing Hitch - Max Tongue Wt. 1399
Fifth Wheel Hitch - Max Trailer Wt. 13810
Maximum Trailering Capacity 13990
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Laramie 4x4 Mega Cab 6'4" Box - Starting From: $54,850
Pricing
Starting From $54,850
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4119
Curb Weight - Rear 3058
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 32710
Dead Weight Hitch - Max Trailer Wt. 13850
Dead Weight Hitch - Max Tongue Wt. 1385
Wt Distributing Hitch - Max Trailer Wt. 13850
Wt Distributing Hitch - Max Tongue Wt. 1385
Fifth Wheel Hitch - Max Trailer Wt. 13670
Maximum Trailering Capacity 13850
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 50.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 40.3
Second Leg Room 43.1
Second Shoulder Room 65.6
Second Hip Room 62.8
Wheelbase 160.5
Length, Overall w/o rear bumper 249.9
Width, Max w/o mirrors 79.4
Height, Overall 78.5
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Limited 4x2 Crew Cab 6'4" Box - Starting From: $62,650
Pricing
Starting From $62,650
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3767
Curb Weight - Rear 2956
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 32240
Dead Weight Hitch - Max Trailer Wt. 14300
Dead Weight Hitch - Max Tongue Wt. 1430
Wt Distributing Hitch - Max Trailer Wt. 14300
Wt Distributing Hitch - Max Tongue Wt. 1430
Fifth Wheel Hitch - Max Trailer Wt. 14130
Maximum Trailering Capacity 14300
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Forged Aluminum
Rear Wheel Material Forged Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Limited 4x2 Crew Cab 8' Box - Starting From: $62,350
Pricing
Starting From $62,350
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3926
Curb Weight - Rear 2931
Gross Vehicle Weight Rating Cap 11100
Gross Combined Wt Rating 33670
Dead Weight Hitch - Max Trailer Wt. 14170
Dead Weight Hitch - Max Tongue Wt. 1417
Wt Distributing Hitch - Max Trailer Wt. 14170
Wt Distributing Hitch - Max Tongue Wt. 1417
Fifth Wheel Hitch - Max Trailer Wt. 13990
Maximum Trailering Capacity 14170
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Forged Aluminum
Rear Wheel Material Forged Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Limited 4x4 Crew Cab 6'4" Box - Starting From: $65,550
Pricing
Starting From $65,550
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4078
Curb Weight - Rear 3032
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 32580
Dead Weight Hitch - Max Trailer Wt. 13920
Dead Weight Hitch - Max Tongue Wt. 1392
Wt Distributing Hitch - Max Trailer Wt. 13920
Wt Distributing Hitch - Max Tongue Wt. 1392
Fifth Wheel Hitch - Max Trailer Wt. 13740
Maximum Trailering Capacity 13920
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Forged Aluminum
Rear Wheel Material Forged Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 79.8
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Limited 4x4 Crew Cab 8' Box - Starting From: $65,250
Pricing
Starting From $65,250
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4203
Curb Weight - Rear 3044
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 33610
Dead Weight Hitch - Max Trailer Wt. 13780
Dead Weight Hitch - Max Tongue Wt. 1378
Wt Distributing Hitch - Max Trailer Wt. 13780
Wt Distributing Hitch - Max Tongue Wt. 1378
Fifth Wheel Hitch - Max Trailer Wt. 13600
Maximum Trailering Capacity 13780
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Forged Aluminum
Rear Wheel Material Forged Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Limited 4x4 Mega Cab 6'4" Box - Starting From: $67,050
Pricing
Starting From $67,050
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4209
Curb Weight - Rear 3117
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 32710
Dead Weight Hitch - Max Trailer Wt. 13700
Dead Weight Hitch - Max Tongue Wt. 1370
Wt Distributing Hitch - Max Trailer Wt. 13700
Wt Distributing Hitch - Max Tongue Wt. 1370
Fifth Wheel Hitch - Max Trailer Wt. 13520
Maximum Trailering Capacity 13700
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Forged Aluminum
Rear Wheel Material Forged Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 50.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 40.3
Second Leg Room 43.1
Second Shoulder Room 65.6
Second Hip Room 62.8
Wheelbase 160.5
Length, Overall w/o rear bumper 249.9
Width, Max w/o mirrors 79.4
Height, Overall 78.5
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Lone Star 4x2 Crew Cab 6'4" Box - Starting From: $43,450
Pricing
Starting From $43,450
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3644
Curb Weight - Rear 2842
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 32240
Dead Weight Hitch - Max Trailer Wt. 14540
Dead Weight Hitch - Max Tongue Wt. 1454
Wt Distributing Hitch - Max Trailer Wt. 14540
Wt Distributing Hitch - Max Tongue Wt. 1454
Fifth Wheel Hitch - Max Trailer Wt. 14360
Maximum Trailering Capacity 14540
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Lone Star 4x2 Crew Cab 8' Box - Starting From: $43,650
Pricing
Starting From $43,650
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3740
Curb Weight - Rear 2824
Gross Vehicle Weight Rating Cap 11100
Gross Combined Wt Rating 33670
Dead Weight Hitch - Max Trailer Wt. 14470
Dead Weight Hitch - Max Tongue Wt. 1447
Wt Distributing Hitch - Max Trailer Wt. 14470
Wt Distributing Hitch - Max Tongue Wt. 1447
Fifth Wheel Hitch - Max Trailer Wt. 14290
Maximum Trailering Capacity 14470
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Lone Star 4x2 Reg Cab 8' Box - Starting From: $39,095
Pricing
Starting From $39,095
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3450
Curb Weight - Rear 2609
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 21500
Dead Weight Hitch - Max Trailer Wt. 14970
Dead Weight Hitch - Max Tongue Wt. 1497
Wt Distributing Hitch - Max Trailer Wt. 14970
Wt Distributing Hitch - Max Tongue Wt. 1497
Fifth Wheel Hitch - Max Trailer Wt. 14790
Maximum Trailering Capacity 14970
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 18 X 8
Rear Wheel Size 18 X 8
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 45.4
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 3
Front Head Room 39.8
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Wheelbase 140
Length, Overall w/o rear bumper 232
Width, Max w/o mirrors 79.4
Height, Overall 77.8
Ground Clearance, Front 7.4
Ground Clearance, Rear 7.4
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.7
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Lone Star 4x4 Crew Cab 6'4" Box - Starting From: $46,350
Pricing
Starting From $46,350
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3889
Curb Weight - Rear 2856
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 32580
Dead Weight Hitch - Max Trailer Wt. 14290
Dead Weight Hitch - Max Tongue Wt. 1429
Wt Distributing Hitch - Max Trailer Wt. 14290
Wt Distributing Hitch - Max Tongue Wt. 1429
Fifth Wheel Hitch - Max Trailer Wt. 14110
Maximum Trailering Capacity 14290
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 79.8
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Lone Star 4x4 Crew Cab 8' Box - Starting From: $46,550
Pricing
Starting From $46,550
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4041
Curb Weight - Rear 2897
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 33610
Dead Weight Hitch - Max Trailer Wt. 14090
Dead Weight Hitch - Max Tongue Wt. 1409
Wt Distributing Hitch - Max Trailer Wt. 14090
Wt Distributing Hitch - Max Tongue Wt. 1409
Fifth Wheel Hitch - Max Trailer Wt. 13910
Maximum Trailering Capacity 14090
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Spare Tire Order Code TBE
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Lone Star 4x4 Mega Cab 6'4" Box - Starting From: $47,850
Pricing
Starting From $47,850
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4011
Curb Weight - Rear 2967
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 32710
Dead Weight Hitch - Max Trailer Wt. 14050
Dead Weight Hitch - Max Tongue Wt. 1405
Wt Distributing Hitch - Max Trailer Wt. 14050
Wt Distributing Hitch - Max Tongue Wt. 1405
Fifth Wheel Hitch - Max Trailer Wt. 13870
Maximum Trailering Capacity 14050
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 50.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 40.3
Second Leg Room 43.1
Second Shoulder Room 65.6
Second Hip Room 62.8
Wheelbase 160.5
Length, Overall w/o rear bumper 249.9
Width, Max w/o mirrors 79.4
Height, Overall 78.5
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Lone Star 4x4 Reg Cab 8' Box - Starting From: $41,895
Pricing
Starting From $41,895
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3725
Curb Weight - Rear 2677
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 34540
Dead Weight Hitch - Max Trailer Wt. 20590
Dead Weight Hitch - Max Tongue Wt. 2059
Wt Distributing Hitch - Max Trailer Wt. 20590
Wt Distributing Hitch - Max Tongue Wt. 2059
Fifth Wheel Hitch - Max Trailer Wt. 25120
Maximum Trailering Capacity 20590
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 18 X 8
Rear Wheel Size 18 X 8
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 41.5
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 3
Front Head Room 39.8
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Wheelbase 140
Length, Overall w/o rear bumper 232
Width, Max w/o mirrors 79.4
Height, Overall 79.5
Ground Clearance, Front 8.5
Ground Clearance, Rear 8.5
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.7
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Longhorn 4x2 Crew Cab 6'4" Box - Starting From: $57,650
Pricing
Starting From $57,650
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3718
Curb Weight - Rear 2905
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 32240
Dead Weight Hitch - Max Trailer Wt. 23000
Dead Weight Hitch - Max Tongue Wt. 2300
Wt Distributing Hitch - Max Trailer Wt. 23000
Wt Distributing Hitch - Max Tongue Wt. 2300
Fifth Wheel Hitch - Max Trailer Wt. 21540
Maximum Trailering Capacity 23000
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Longhorn 4x2 Crew Cab 8' Box - Starting From: $57,850
Pricing
Starting From $57,850
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3892
Curb Weight - Rear 2908
Gross Vehicle Weight Rating Cap 11100
Gross Combined Wt Rating 33670
Dead Weight Hitch - Max Trailer Wt. 14230
Dead Weight Hitch - Max Tongue Wt. 1423
Wt Distributing Hitch - Max Trailer Wt. 14230
Wt Distributing Hitch - Max Tongue Wt. 1423
Fifth Wheel Hitch - Max Trailer Wt. 14050
Maximum Trailering Capacity 14230
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Longhorn 4x4 Crew Cab 6'4" Box - Starting From: $60,550
Pricing
Starting From $60,550
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4029
Curb Weight - Rear 2980
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 32580
Dead Weight Hitch - Max Trailer Wt. 14020
Dead Weight Hitch - Max Tongue Wt. 1402
Wt Distributing Hitch - Max Trailer Wt. 14020
Wt Distributing Hitch - Max Tongue Wt. 1402
Fifth Wheel Hitch - Max Trailer Wt. 13840
Maximum Trailering Capacity 14020
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 20 X 8
Rear Wheel Size 20 X 8
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 79.8
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Longhorn 4x4 Crew Cab 8' Box - Starting From: $60,750
Pricing
Starting From $60,750
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4169
Curb Weight - Rear 3020
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 33610
Dead Weight Hitch - Max Trailer Wt. 13840
Dead Weight Hitch - Max Tongue Wt. 1384
Wt Distributing Hitch - Max Trailer Wt. 13840
Wt Distributing Hitch - Max Tongue Wt. 1384
Fifth Wheel Hitch - Max Trailer Wt. 13660
Maximum Trailering Capacity 13840
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Longhorn 4x4 Mega Cab 6'4" Box - Starting From: $62,050
Pricing
Starting From $62,050
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4160
Curb Weight - Rear 3091
Gross Vehicle Weight Rating Cap 1038
Gross Combined Wt Rating 32710
Dead Weight Hitch - Max Trailer Wt. 19650
Dead Weight Hitch - Max Tongue Wt. 1965
Wt Distributing Hitch - Max Trailer Wt. 19650
Wt Distributing Hitch - Max Tongue Wt. 1965
Fifth Wheel Hitch - Max Trailer Wt. 22240
Maximum Trailering Capacity 19650
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TEA
Rear Tire Order Code TEA
Front Tire Size LT285/60SR20
Rear Tire Size LT285/60SR20
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 50.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Electronic
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 5
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 40.3
Second Leg Room 43.1
Second Shoulder Room 65.6
Second Hip Room 62.8
Wheelbase 160.5
Length, Overall w/o rear bumper 249.9
Width, Max w/o mirrors 79.4
Height, Overall 78.5
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Tradesman 4x2 Crew Cab 6'4" Box - Starting From: $38,300
Pricing
Starting From $38,300
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3585
Curb Weight - Rear 2815
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 32240
Dead Weight Hitch - Max Trailer Wt. 14630
Dead Weight Hitch - Max Tongue Wt. 1463
Wt Distributing Hitch - Max Trailer Wt. 14630
Wt Distributing Hitch - Max Tongue Wt. 1463
Fifth Wheel Hitch - Max Trailer Wt. 14450
Maximum Trailering Capacity 14630
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 18 X 8
Rear Wheel Size 18 X 8
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Tradesman 4x2 Crew Cab 8' Box - Starting From: $38,500
Pricing
Starting From $38,500
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3727
Curb Weight - Rear 2840
Gross Vehicle Weight Rating Cap 11100
Gross Combined Wt Rating 33670
Dead Weight Hitch - Max Trailer Wt. 14460
Dead Weight Hitch - Max Tongue Wt. 1446
Wt Distributing Hitch - Max Trailer Wt. 14460
Wt Distributing Hitch - Max Tongue Wt. 1446
Fifth Wheel Hitch - Max Trailer Wt. 14280
Maximum Trailering Capacity 14460
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.6
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Tradesman 4x2 Reg Cab 8' Box - Starting From: $34,845
Pricing
Starting From $34,845
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 5500
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3402
Curb Weight - Rear 2635
Gross Vehicle Weight Rating Cap 10700
Gross Combined Wt Rating 34630
Dead Weight Hitch - Max Trailer Wt. 14990
Dead Weight Hitch - Max Tongue Wt. 1499
Wt Distributing Hitch - Max Trailer Wt. 14990
Wt Distributing Hitch - Max Tongue Wt. 1499
Fifth Wheel Hitch - Max Trailer Wt. 14810
Maximum Trailering Capacity 14990
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Aluminum
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 45.4
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Rear Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model None
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 3
Front Head Room 39.8
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Wheelbase 140
Length, Overall w/o rear bumper 232
Width, Max w/o mirrors 79.4
Height, Overall 77.8
Ground Clearance, Front 7.4
Ground Clearance, Rear 7.4
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.7
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Tradesman 4x4 Crew Cab 6'4" Box - Starting From: $41,200
Pricing
Starting From $41,200
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3853
Curb Weight - Rear 2876
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 32580
Dead Weight Hitch - Max Trailer Wt. 20370
Dead Weight Hitch - Max Tongue Wt. 2037
Wt Distributing Hitch - Max Trailer Wt. 20370
Wt Distributing Hitch - Max Tongue Wt. 2037
Fifth Wheel Hitch - Max Trailer Wt. 14120
Maximum Trailering Capacity 20370
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 18 X 8
Rear Wheel Size 18 X 8
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 47.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 31
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Manual
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 149.5
Length, Overall w/o rear bumper 237.4
Width, Max w/o mirrors 79.4
Height, Overall 79.8
Cargo Box Length @ Floor 76.3
Cargo Box Width @ Top, Rear 50
Cargo Box Width @ Floor 50
Cargo Box Width @ Wheelhousings 48.1
Cargo Box (Area) Height 20.1
Tailgate Width 60.4
Cargo Volume 57.5
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Tradesman 4x4 Crew Cab 8' Box - Starting From: $41,400
Pricing
Starting From $41,400
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 4017
Curb Weight - Rear 2903
Gross Vehicle Weight Rating Cap 11400
Gross Combined Wt Rating 33610
Dead Weight Hitch - Max Trailer Wt. 14110
Dead Weight Hitch - Max Tongue Wt. 1411
Wt Distributing Hitch - Max Trailer Wt. 14110
Wt Distributing Hitch - Max Tongue Wt. 1411
Fifth Wheel Hitch - Max Trailer Wt. 13390
Maximum Trailering Capacity 14110
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 53.7
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Manual
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 6
Front Head Room 40.9
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Second Head Room 39.8
Second Leg Room 40.2
Second Shoulder Room 65.6
Second Hip Room 62.7
Wheelbase 169.5
Length, Overall w/o rear bumper 260.8
Width, Max w/o mirrors 79.4
Height, Overall 78.4
Ground Clearance, Front 7.3
Ground Clearance, Rear 7.3
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.9
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
Ram 3500 - Tradesman 4x4 Reg Cab 8' Box - Starting From: $37,645
Pricing
Starting From $37,645
Destination Charge $1,695
Chassis
Gross Axle Wt Rating - Front 6000
Gross Axle Wt Rating - Rear 7000
Curb Weight - Front 3698
Curb Weight - Rear 2704
Gross Vehicle Weight Rating Cap 11000
Gross Combined Wt Rating 34540
Dead Weight Hitch - Max Trailer Wt. 20630
Dead Weight Hitch - Max Tongue Wt. 2063
Wt Distributing Hitch - Max Trailer Wt. 20630
Wt Distributing Hitch - Max Tongue Wt. 2063
Fifth Wheel Hitch - Max Trailer Wt. 25240
Maximum Trailering Capacity 20630
Suspension Type - Front Multi-Link
Suspension Type - Rear Leaf
Axle Type - Front Non-Independent
Axle Type - Rear Rigid Axle
Axle Ratio (:1) - Front 3.73
Axle Ratio (:1) - Rear 3.73
Front Tire Order Code TCN
Rear Tire Order Code TCN
Spare Tire Order Code TBE
Front Tire Size LT275/70SR18
Rear Tire Size LT275/70SR18
Spare Tire Size Full-Size
Front Tire Capacity 7280
Rear Tire Capacity 7280
Front Wheel Size 17 X 6
Rear Wheel Size 17 X 6
Spare Wheel Size Full-Size
Front Wheel Material Styled Steel
Rear Wheel Material Styled Steel
Spare Wheel Material Steel
Steering Type Re-Circulating Ball
Turning Diameter - Curb to Curb 41.5
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.2
Rear Brake Rotor Diam x Thickness 14.1
Fuel Tank Capacity, Approx 32
Powertrain
Drivetrain Four Wheel Drive
Engine Order Code ESA
Engine Type Premium Unleaded V-8
Displacement 6.4 L/392
Fuel System Sequential MPI
SAE Net Horsepower @ RPM 410 @ 5600
SAE Net Torque @ RPM 429 @ 4000
Trans Order Code DFX
Trans Type 8
Trans Description Cont. Automatic w/OD
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans PTO Access No
Transfer Case Model Manual
Transfer Case Power Take Off No
Cold Cranking Amps @ 0° F (Primary) 730
Cold Cranking Amps @ 0° F (2nd) 730
Maximum Alternator Capacity (amps) 180
Engine Oil Cooler None
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Engine Displacement Units 6.7
Engine Camshaft OHV
Engine Block Type iron
Engine Cylinder Count 6
Engine Valve Count 4
Dimensions
Passenger Capacity 3
Front Head Room 39.8
Front Leg Room 40.9
Front Shoulder Room 65.9
Front Hip Room 62.9
Wheelbase 140
Length, Overall w/o rear bumper 232
Width, Max w/o mirrors 79.4
Height, Overall 79.5
Ground Clearance, Front 8.5
Ground Clearance, Rear 8.5
Cargo Box Length @ Floor 98.3
Cargo Box Width @ Top, Rear 66.4
Cargo Box Width @ Floor 66.4
Cargo Box Width @ Wheelhousings 51
Cargo Box (Area) Height 20.2
Tailgate Width 60.4
Cargo Volume 74.7
Warranty
Basic Years 3
Basic Miles/km 36,000
Drivetrain Years 5
Drivetrain Miles/km 60,000
Corrosion Years 5
Corrosion Miles/km 100,000
Roadside Assistance Years 5
Roadside Assistance Miles/km 100,000
